Introduction

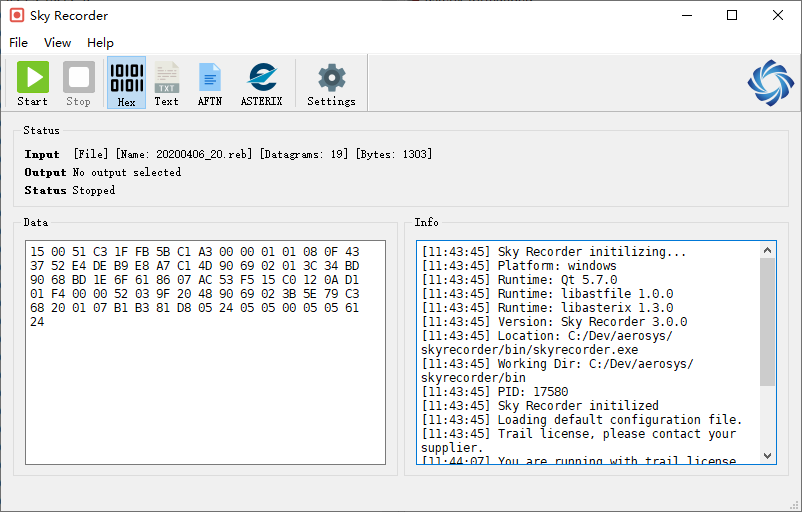

Sky Recorder is a tool to record, replay and forward data in binary or text format.

Sky Recorder supports different type of input and output interfaces, including serial, LAN, and files.

Sky Recorder is general purpose data recording and playback tool, it works with both binary and text data.

Sky Recorder has a set of data decoding functions, and can decode live data in different formats.

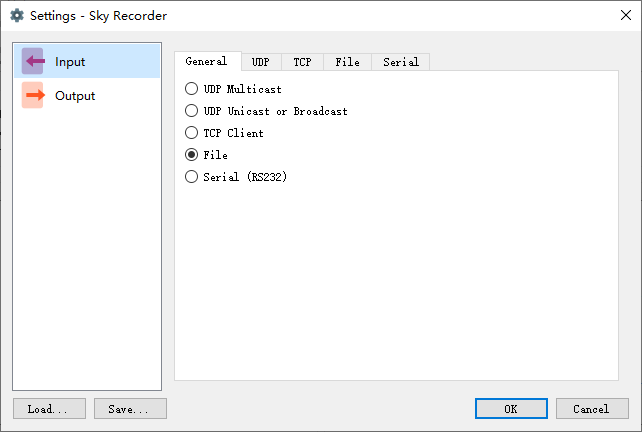

Input Interfaces

Sky Recorder supports the next types of input interfaces.

• UDP Multicast
• UDP Unicast
• UDP Broadcast
• TCP Client
• Serial Async (RS232)
• Serial Sync (HDLC)
• Recording Files

Note: Specific hardware is needed to use serial HDLC interface.

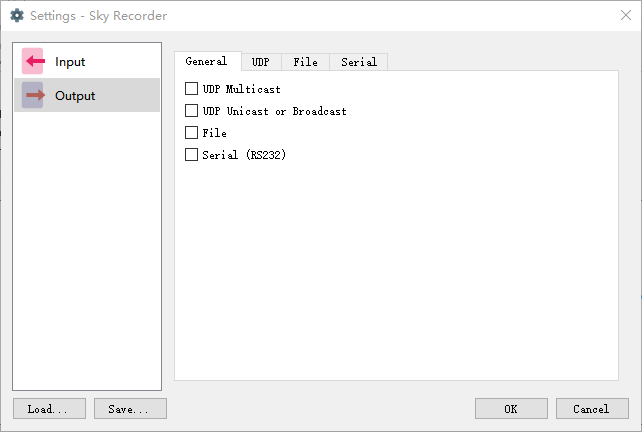

Output Interfaces

Sky Recorder supports the next types of output interfaces.

• UDP Multicast
• UDP Unicast
• UDP Broadcast
• Serial Async (RS232)
• Serial Sync (HDLC)
• Recording Files

Note: Specific hardware is needed to use serial HDLC interface.

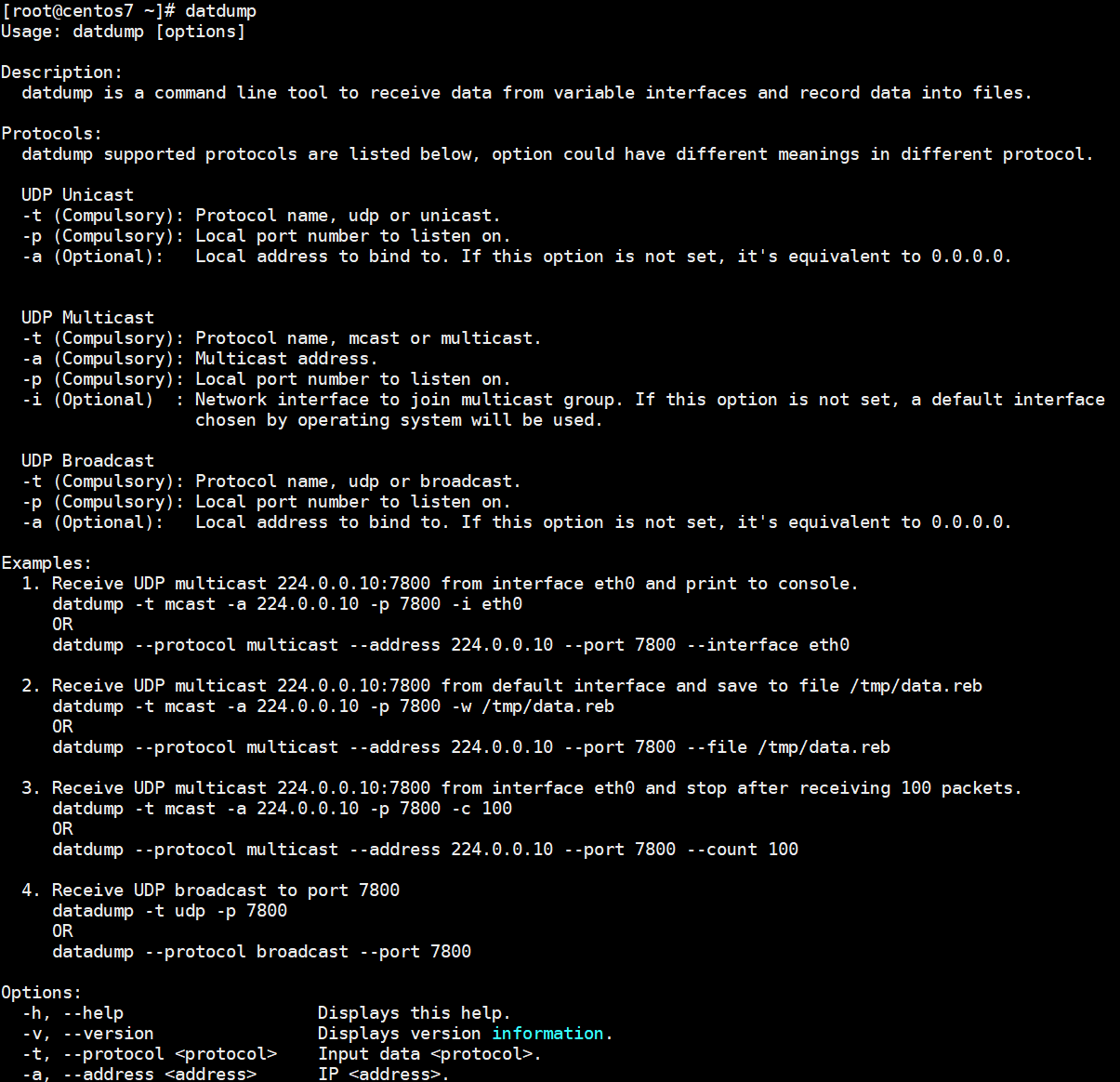

Command Line Utility

Sky Recorder also contains a command line tool on Linux. It is more convinent to use in non-GUI environment.
